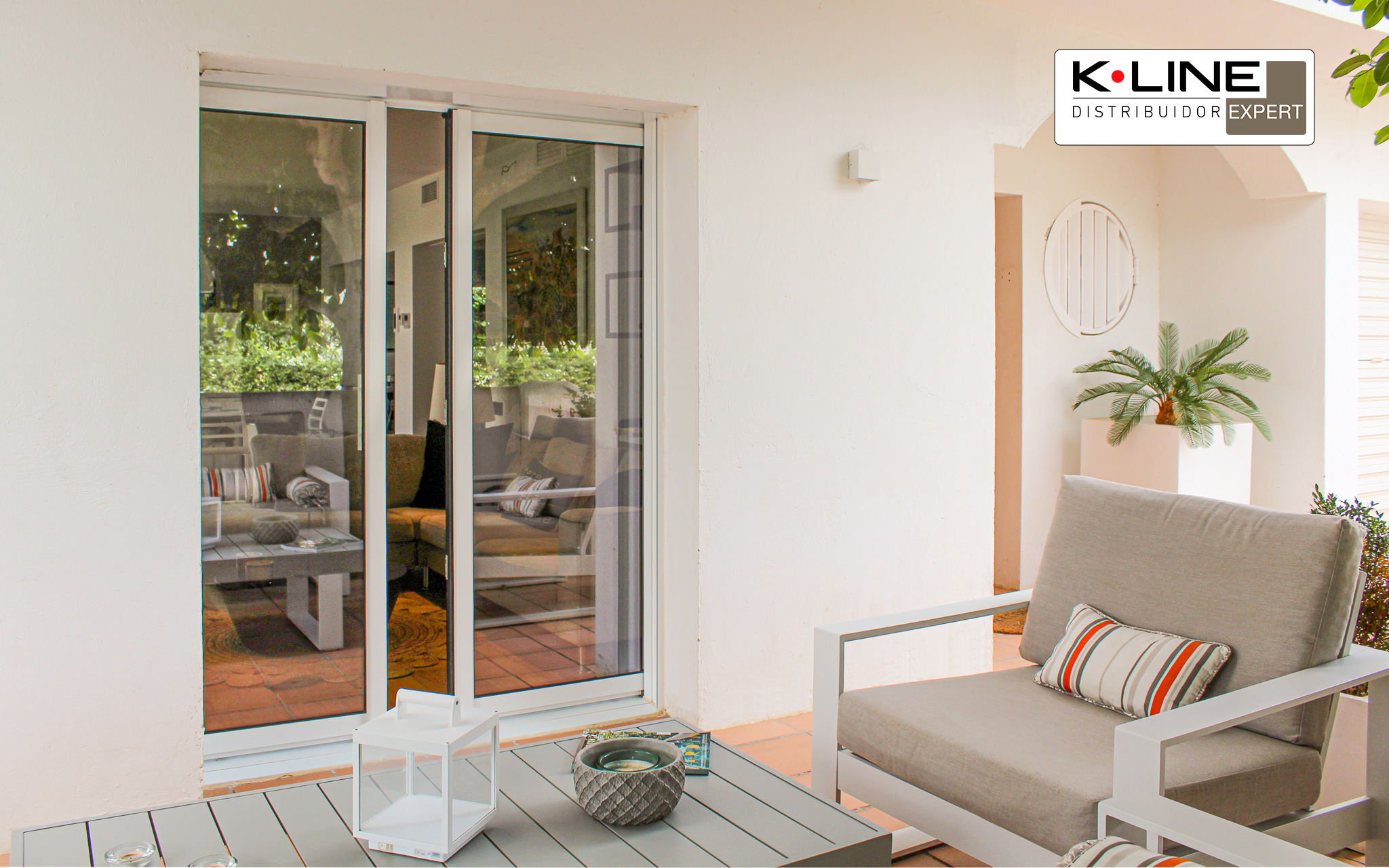

Sliding door with hidden leaves between walls by K·LINE
The Galandage sliding door (KL-BG series from KLINE) offers the possibility of opening the entire window space without invading interior or exterior space thanks to the sliding of the leaf between partitions.
The door frame is designed to close hermetically and thus achieve good thermal and acoustic insulation.
As with Kline sliding doors and windows, it is not necessary to use a higher range to cover large dimensions thanks to the superior quality, doors of up to 5mx3m (width by height) can be made with two leaves on two tracks.
Features of Galandage
- 28 or 32 mm insulating glass (e.g.: 4-18-6 or 4+4-18-6 + treatments).
- Various standard colours available and possibility of two-colour (different colour inside and outside).
- Insulating glass with black interlayer and argon gas filling.

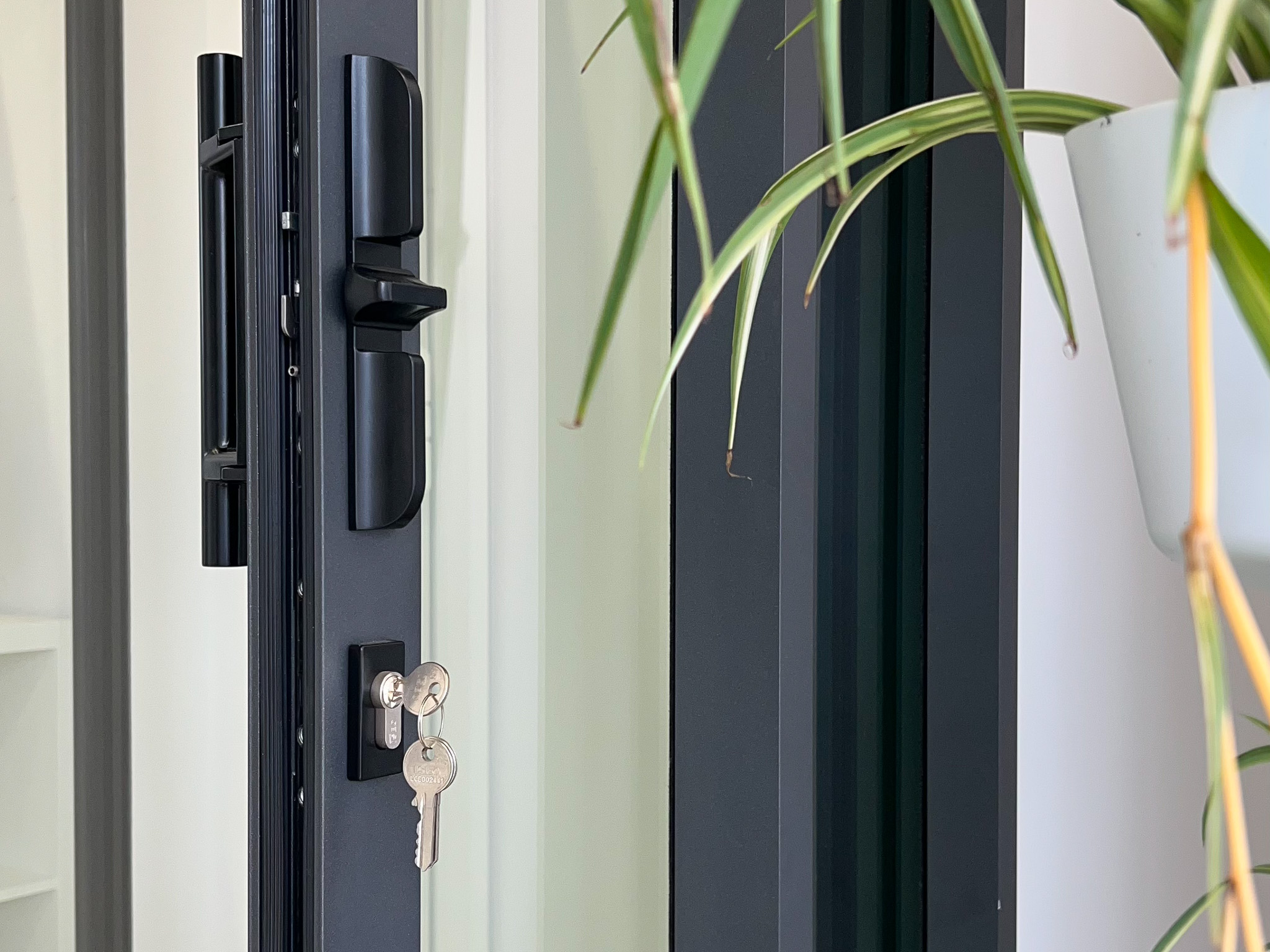

- 3-point security lock.
- Intuitive handle for easy opening of the slide (optional).
- External handle (with or without key) (optional).
- Recessed rail and exterior profile adapted to the passage of disabled people (optional).
- Leaf concealment area with factory insulation and sealing (Up 0.36 W/m².K for 1 rail with 160 mm chassis or 2 rails with 215 mm chassis, Up 0.24 W/m².K for 1 rail with 200 mm chassis).
- Possibility of creating large dimensions of up to a maximum of 5,000 x 3,000 mm (width x height; 2 rails / 2 leaves).
- 28 or 32 mm insulating glass (e.g.: 4-18-6 or 4+4-18-6 + treatments).
- Various standard colours available and possibility of two-colour (different colour inside and outside).
- Insulating glass with black interlayer and argon gas filling.
- 3-point security lock.
- Intuitive handle for easy opening of the slide (optional).
- External handle (with or without key) (optional).
- Recessed rail and exterior profile adapted to the passage of disabled people (optional).
- Leaf concealment area with factory insulation and sealing (Up 0.36 W/m².K for 1 rail with 160 mm chassis or 2 rails with 215 mm chassis, Up 0.24 W/m².K for 1 rail with 200 mm chassis).
- Possibility of creating large dimensions of up to a maximum of 5,000 x 3,000 mm (width x height; 2 rails / 2 leaves).
Would you like us to advise you on your project?
Opening Options
Would you like us to advise you on your project?
K-LINE color chart
For casement and tilt-and-turn windows , the entire range of sliding doors, STEEL doors, PREMIUM doors and monobloc shutters.
WHITE MATT
RAL 9016 CM
RAL 7022 MATT
RAL 7016 MATT
34000 CM
RAL 9005 CM
CM GOLD
GLOSS WHITE
SILVER SQ
SQ STAINLESS STEEL SIMILAR
BRONZE SQ
RAL 9016 TX
RAL 9006 TX
RAL 9007 TX
RAL 7012 TX
TX KLINE GREY
NOIR SABLE TX
RAL 9005 TX
COPPER X
RAL8014 TX
RAL 6009 TX
RAL 3004 TX
RAL 5003 TX
GUASIBAN 114 TX
LIGHT CHERRY 177 TX
ANCIENT PINE 105 TX
GOLD EMBERO 116 TX
CEDAR 107 TX
TEKA 1100 TX
ANDALUSIAN WALNUT 1112 TX
WENGUE 195 TX
Galandage Gate with DVI
The DVI (from the French Détecteur de Verrouillage Intégré) or Integrated Lock Detector indicates whether the doors/windows are open or closed from the mobile application.
You'll be able to see if someone has left the door open, closed or adjusted, giving you peace of mind even when you're away from home.
